3D Blasting Design & Geo Technical Software

BlastMetriX 3D

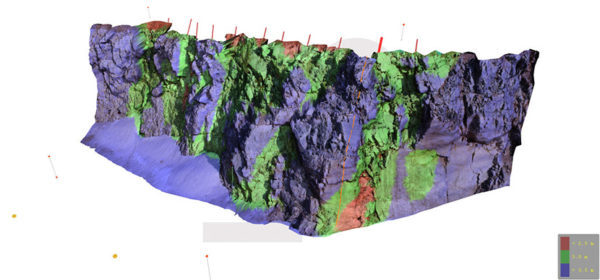

Our BlastMetriX 3D software, specifically dedicated to the blasting industry, provides maximum results.

Features:

• Blast design, blast planning software
• Easy, in-field usage...no “Cloud” necessary
• Terrestrial camera option for “no fly” operations
• Accepts images from several drone manufacturers

Main Benefits:

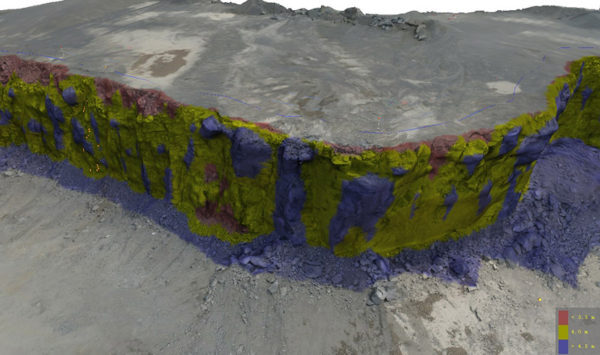

• Computation of the true (minimum) burden
• Detailed profile report for drilling and loading of explosives
• Aids in fly-rock mitigation and vibration reduction
• Superior mapping and volumes measurements
• Reduction of production costs

BlastMetriX3D PDF

ShapeMetriX 3D

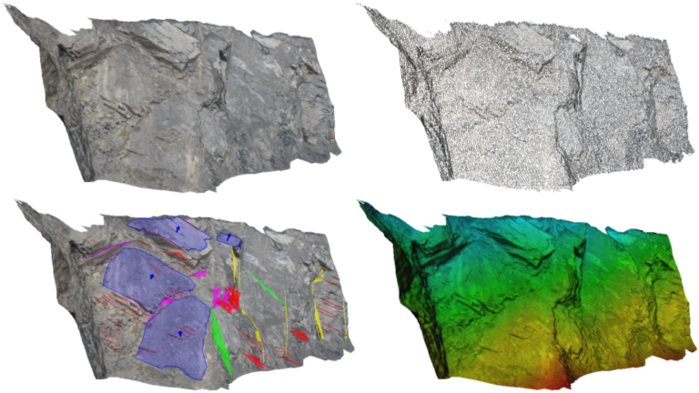

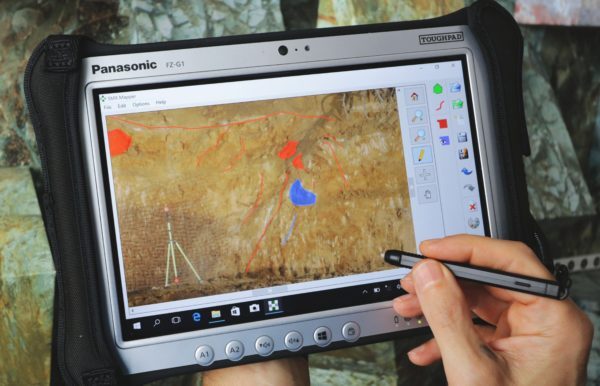

ShapeMetriX 3D is an easy-to-use system to acquire surfaces with three-dimensional images. This dedicated software enables digital rock mass characterisation including geometric measurements and geologic mapping capabilities.

Features:

• Reproducible acquisition of rock mass conditions
• Measurement of position, distances, areas
• Sectional views (cross sections), profiles
• Measurement of spatial orientations (dip angle & dip direction)

Main Benefits:

• Contact-free measurement
• Simple, efficient application (taking pictures)
• Comprehensive, life-like documentation
• Reproducible rock mass conditions
• Improved rock mass characterisation

ShapeMetriX 3D PDF

BlastMetriX UAV

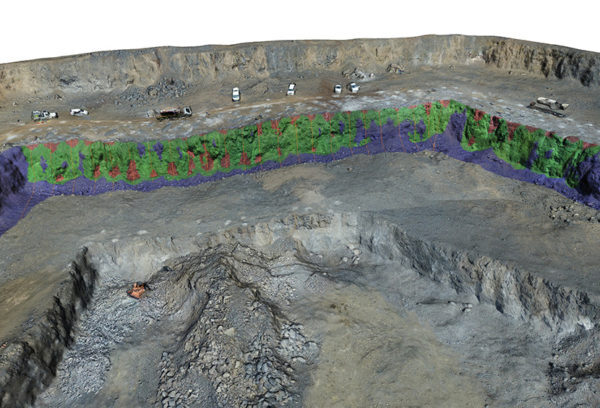

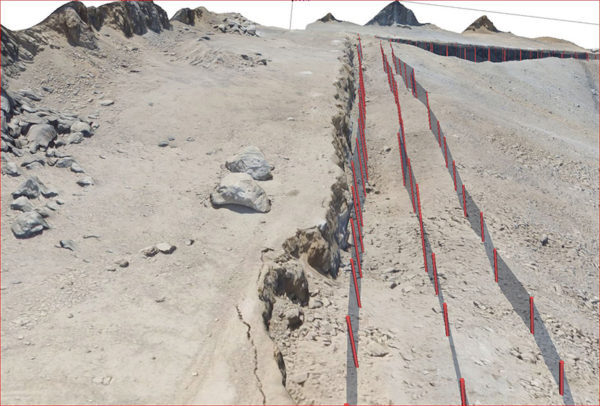

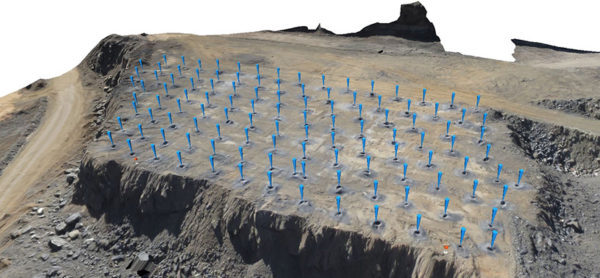

Generation of 3D images from drone imagery for face profiling, blast design and analysis.

Aerial 3D images allow for an optimal acquisition of the bench face and blast site geometry especially of larger sites. With the 3D model the drill pattern is adapted according to the geometric and geologic conditions. Poor blasting results are often caused by inaccuracy of the front row hole placement and inaccurate blast pattern geometry.

3D images from drones are a perfect survey of large blast sites.

• Comprehensive and Complete
• Surveying and documentation in a single step
• Including software for 3D blast design
• Easily combined with rock mass characterisation – see ShapeMetriX UAV

Features:

• Face profiles (burden diagrams and maps)
• Volume to blast
• Pre-post blast comparison
• Quantification of muckpile (movement, volume, swell)
• Quantification of power trough
• Seamless data flow

Avoidance of:

• Fly rock
• Excessive vibrations
• Poor fragmentation
• Poor cast/blast performance
• Loss of grade control
• Wall and floor damages

BlastMetriX UAV PDF

ShapeMetriX UAV

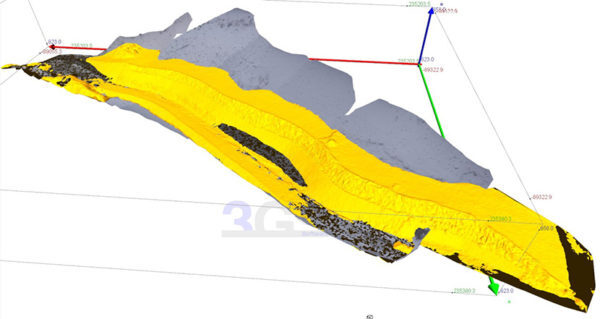

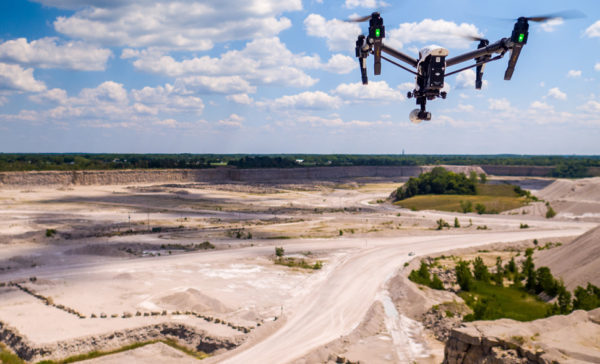

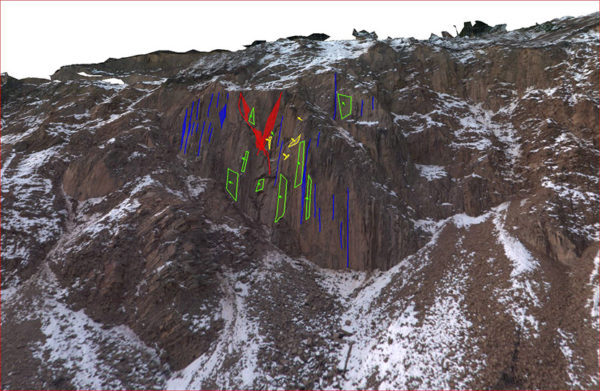

Photographs from an off-the-shelf drone generate comprehensive, highly accurate 3D models. The ShapeMetriX package includes geologic mapping capabilities, as well as geometric measurements including volumetrics.

Features:

• Precise documentation
• Reproducible results
• Highly detailed

Applications:

• Stock piles
• Excavation pits, documentation
• Conservation of evidence
• Geologic mapping
• Volumetric measurement
• Comprehensive documentation

ShapeMetriX UAV PDF

BMX Fragmenter

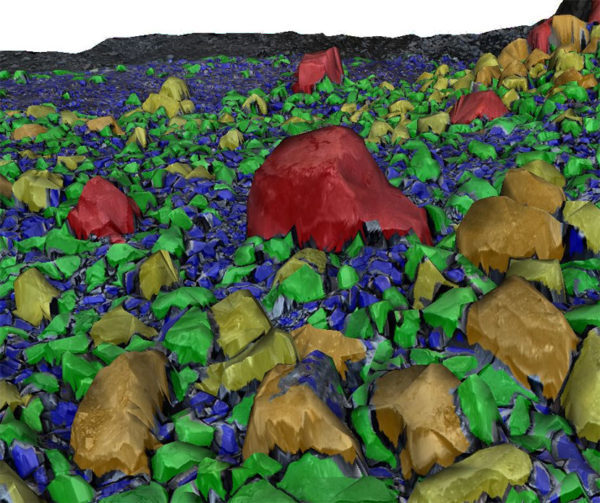

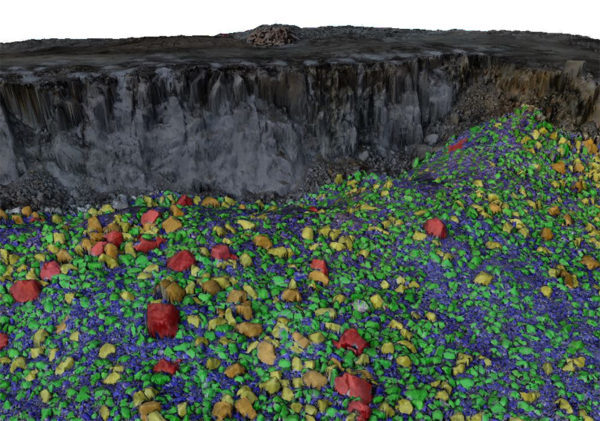

BMX Fragmenter is the first real 3D fragmentation analysis from drone imagery.

Features:

• Combined 2D and 3D analysis
• Fully automated
• Scales automatically
• Statistic evaluation

Main Benefits:

• Overcomes drawbacks of pure 2D analysis
• Easy to use
• Fits perfect for blast quality control
• Combines with BlastMetriX UAV

BMX Fragmenter PDF
